DUOCAM Z3

卡車床罩
  • Standard Version: 140° wide lens + 164 feet tele lens. Commercial Version: 140° wide lens + 140° wide lens

  • 1920 x 1080P Dual Full HD for video recording

  • Advanced Sony Exmor CMOS sensor

  • High-end HDR sensor with 1.8 aperture lens

  • 2.7” high resolution screen

  • MOV video format

  • Driving data record and auto file protection

  • Anti-shake function

  • Support up to 256GB micro SD card

  • Quick release GPS magnetic mount

- YOUR BEST ROAD BUDDY -

The UltraDuo Z3 is the latest generation of our dual-lens dash cam that help you to drive with peace of mind and protect you and your car 24/7.

- SOLID REFERENCES IN COURTS & INSURANCE CLAIMS -

Whenever you’re driving out on the road, there is always a chance that you could get into a car accident. It could be anything from a rear-end collision caused by a distracted driver to a scratch or hit from a driver hurrying to back out of a parking lot. And, with so many factors, it can be difficult to place an insurance claim or provide footage that can be used in court when an accident happens.

We understand the stress and worry. That’s why we’ve invented the UltraDuo Z3. With our unique take on the smart yet simple idea of a dashcam, we want to provide the solution to driving accountability, one car at a time.


With UltraDuo Z3 set up in your car, you can breathe easy. Our two-lens dashboard camera with loop recording and auto file protection provides you with tremendous peace of mind while driving. Because you can record two directions at once, it’s easy to make sure that the information you need is caught on camera!


- MAGNETIC CHARGING MOUNT -


Our patent-designed magnetic charging mount allows you to place and remove the device quickly and easily, unlike traditional mounts that use a latching mechanism. We rigorously test the powerful magnets and unique structural design, so there is no need to worry about mounting or connection problems.

The magnetic charging mount is equipped with a charging port, which uses the car charging cable and USB cable to charge the device. This reduces the inconvenience of attaching and removing the device, and the wire arrangement in the car is seamless.

- 180-DEGREE ROTATIONAL LENS -


Our UltraDash Z3 has two 180-degree rotatable lenses. With their extreme mobility, you can point them any direction you want! They record simultaneously. The left lens is a 160-degree wide angle lens and the right lens is a telephoto zoom-in lens capable of recording distances up to 164 feet (50 meters). This is helpful whether you want to record the traffic around your car, or, in a commercial edition, if you want to record your conversations with your passengers.

- LOOP RECORDING -


It’s irritating when your camera doesn’t record vital information because it doesn’t have room to store it. Unlike action cameras, digital cameras, or regular video recorders, our Z3 doesn’t have a problem with memory capacity. Unfortunately, we didn’t invent an unlimited memory storage system. However, we did equip our Z3 with the next best thing! Loop recording enables the Z3 to automatically overwrite the oldest, non-protected video files with the latest video. This means the Z3 can keep recording, even if its memory becomes full!

- HOT KEYS -


The Hot Key functions were designed to protect both you as the driver and the other drivers on the road. These keys are positioned around the 2.7 inch LCD display of the Z3 and are clearly labeled for easy accessibility.

- DAYTIME / NIGHTTIME IMAGE QUALITY -


UltraDash Z3 uses a high-end Sony Exmor image sensor component with an F1.8 large aperture six-glass lens. It offers vivid color, and with its HDR functionality, it also produces high-quality nighttime images by enhancing the suppression of over-exposure under intense light. View the actual picture quality in the test footage.

- 2.7-INCH DISPLAY -


The Z3 is equipped with a 2.7 inch LCD screen so it’s easy to operate the camera, see what the camera’s recording in real time, and watch playback later.

- HIGH AND LOW-TEMPERATURE RESISTANCE -


The storage temperature for this device is between -4℉ - 176℉ (-20℃ - 80℃), and the working temperature is from 14℉ - 140℉ (-10℃ - 60℃). This resistance means that you can continue using the UltraDash Z3 wherever you are. Whether in the hot desert or cold regions, keep recording.

- PARKING MODE (OPTIONAL) -


With our specially developed parking mode, the UltraDash Z3 will stay in a standby mode in conjunction with our Hardwire Kit. In this mode, the device can detect an impact above the normal level, recording events that could damage your vehicle such as a hit and run driver. Also, the Hardwire Kit has an automatic power cutoff function. When the device detects that the car battery is below a certain level, it will cut off power to prevent draining the battery.

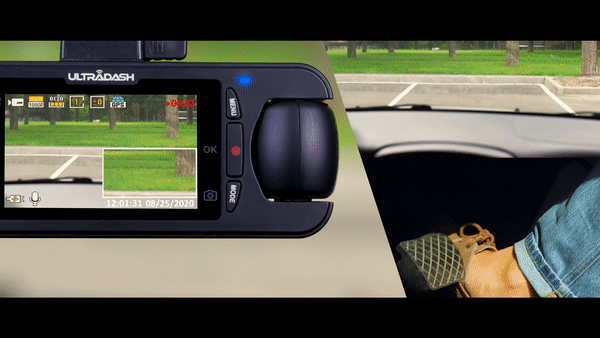

- AUTOMATIC PROTECTION FILE -

WEB_Z3-12-auto protect.gif

There are definitely moments in video footage that are more important than others, such as the moment of incident or impact. To ensure your vital files are saved, we added an auto file protection function to the Z3. Whenever the camera detects an external force on your car, the file protection feature will automatically lock the footage surrounding that moment, protecting it from being overwritten in the loop recording function.

- GPS LOGGING  -


With the GPS Logger magnetic charging mount, you can record the speed you’re driving and coordinate with an accurate time for your drive. Download the iQ Player on our website, and you can check the drive route on the iQ Player. This function is especially useful for companies with an entire fleet of vehicles.

- STANDARD VS COMMERCIAL -


The UltraDash Z3 has two editions: standard and commercial. The standard edition features one wide angle lens and one telephoto lens. The commercial edition features two wide angle lenses.


Standard



This edition is designed with general users in mind. It works great for daily commutes!

Both lenses record simultaneously. The wide angle lens captures more up-close traffic and cars, while the telephoto lens records in a magnified way, to record objects that are farther way, like license plates, road obstructions, etc. Because both lenses are rotatable, you can record traffic ahead of you and behind you at the same time. No need to install two separate cameras – the Z3 is the only camera you need!


Commercial



This edition is designed especially for taxi drivers or other professional drivers

If you have an unwanted passenger, being able to record and save footage of your driver-passenger interaction can help protect you by giving you control. This commercial edition has two wide angle lenses for professional drivers to easily record both traffic and driver-passenger interaction at the same time. This camera includes a microphone so you can record any conversations in your car.

Important note: If you use the Z3 or any other camera to record inside of your commercial vehicle, you must have a warning sticker on your car to inform your passengers that they are being recorded

- TESTING FOOTAGE -

Watch the videos below to see how well UltraDash Z3’s image quality compares to other dashcams!

Note: Both editions come with a built-in microphone which you can turn on/off for voice recording.

Remember to set the video quality to 1080P resolution by clicking the gear button at the bottom of the video screen to ensure you view the crystal-clear footage the Z3 can capture!

You can use the iQ player's editing function to output the video as PIP style as below.

Daytime testing footage:

Set both lenses forward:

Set the wide angle lens forward and the telephoto lens to rear-view:

- TESTING FOOTAGE AT NIGHT -

RIGHT LENS (TELEPHOTO ZOOM LENS)

Specifications:


File Format: Video: MOV. Image: JPG
Resolution: Full HD 1080P (Left camera) + Full HD 1080P (Right camera)
Audio Recording: Support
Super Capacitor: Built-in
Loop Recording: Oldest file will be automatically deleted in order to make room for new file
Information Stamp: Support
Parking Mode: (Vibration detection) Support
Memory Card: Support up to 256GB Class10 or higher Micro SD Card (not included)
Language: English
Storage Temperature -4°F to 176°F.
Operating Temperature: 14°F to 140°F. (Please remove device from windshield if temperature exceeded limitation)
Ultra slim design for easy setup and convenient installation

What's Needed:
Micro SD memory card 8-256GB SDHC, Class 10 (48mb/s) U1 or U3. Please use a recognized brand for best result.

Package Includes:
UltraDash Z3 (Standard Edition) Dash Camera / GPS Magnetic Suction Mount / 3M Adhesive Mount / Static Side Film / 10ft. Car Charging Cable / 4ft. Data Cable / Cable Clips / User Manual

Note:
The life of SD Cards is limited but it could be from 3 months to a year or more depends on usage, be sure to format the memory card once a while for optimal use. (Replace memory card when it’s become unusable).
